This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;
Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.
The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.
This table is for glass transmission, the table size is customized according to customer's requirements.
This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy.
Item NO.:
SY-3826Color:
Steel Blue or CustomizedLead Time:
20 daysWarranty:
1 YearSize Range:
customizedProcessing Range:
Heavy glass
Equipment Parameters
Flip sprocket chain: special high-precision reinforced type.
Transmission roller: imported pu material
Vacuum sucker: imported natural rubber material (double adsorption structure)
Transmission / flip motor: Bonnie motor
Vacuum pump: Wenling stone bridge vacuum pump
Bearing: Harbin, China.
Electrical components
PLC controller: Panasonic Japan
Frequency converter: Taiwan Delta
Optoelectronic switch: Shanghai SONON
Circuit breaker and motor protector: China CHINT
Control elemer: imported flexible shielded elemer
Contactor: Siyan technology
Main control vacuum solenoid valve pneumatic original: Zhejiang Yongqing manufacturing
Technical Parameter
Loading glass size range: minimum size: 1500*1000mm, maximum size: 3700*2500mm
Loading thickness 3-25mm
Fastest loading time 40s
Transport speed 0-40m/min (adjustable )
Maximum suction depth: 700mm
Maximum loading weight : 1000KG
Number of loading arm on one side: 4 arms
Number of suckers on one arm :3
Flip side: single
Loading station: single
Voltage： 308V/50hz （could be customized）
Power: 12KW
Compressed air: 0.3~0.5Mpa
Vacuum pressure: -70 ~ 90 KPA (adjustable according to glass thickness)
X axis conventional walking speed: 25m / min (variable frequency adjustable)
Y-axis conventional walking speed: 5 m / min (variable frequency adjustable)

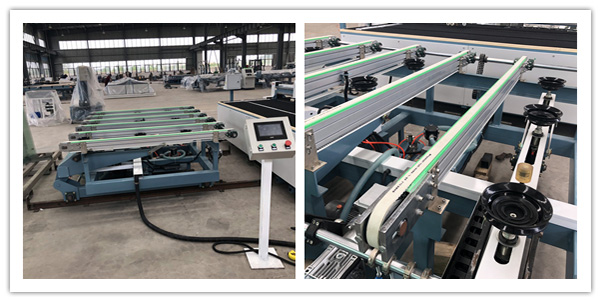

Related Pictures
Anhui Ruilong Glass Machinery Co., Ltd.
Email address : info@ahrlbljx.com
Phone : +8613063758190
Add：No.9 East of Shengli Road, Longzihu District

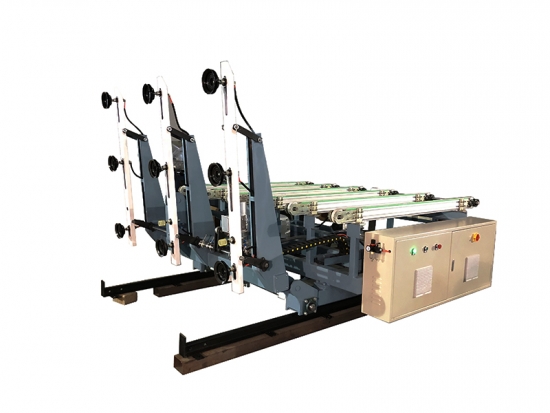

Single Flip Loading Machine
Glass loading machine with flip arms and suckers, could take glass move to another place.
Glass Handling Machine
Glass Handling machine could be customized according to customer's requirements.

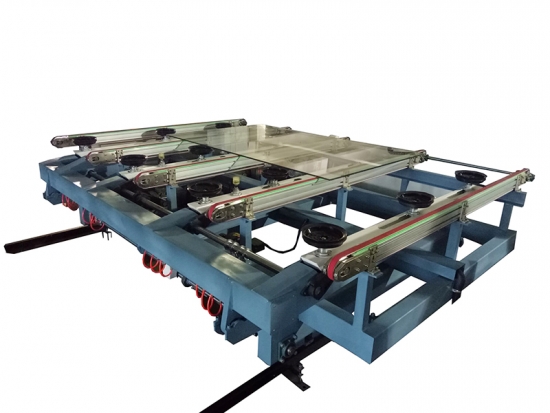

SY-1215 Glass Loading Machine
SY-1215 glass loading machine main use for glass automatic loading. Place the glass in the specified position, given the pickup signal, Sucker automatically turn up and adsorb glass then put the glass on transfer roller, transfer the glass to cutting machine automatically.

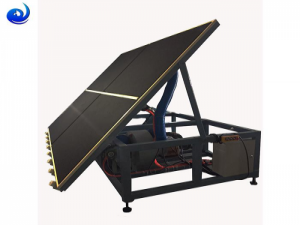

Tilt Turnover type air flotation breaking table
The machine is designed to facilitate the turning of glass from the glass rack and use for break off glass.
Applied to photovoltaic glass: paper removal machine, loading table, transfer table
This line is designed according to the requirements of the buyer. It is used to complete the process of automatic flipping, loading and automatic paper placement of photovoltaic glass sheets.
