Pencil Round shape glass edging processing line

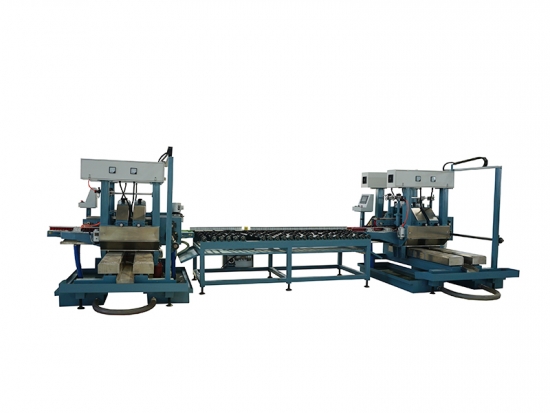

This machine consists of two set of straight line round shape edging machine (4 spindles/ 6pindles / 8spindles) 90 degree automatic steering table. Adopting PLC control system, Set the parameters to control the processing width and speed through the interface, High-precision double linear guide and double ball screw transmission structure and control system ensure the accuracy of the processing dimensions, It is suitable for the processing of thin glass within the thickness of 0.5~5mm. It has high milling speed and transfer efficiency.Suitable for the processing of thin glass with a thickness of 0.5~5mm, high processing speed and high transfer efficiency, suitable for deep processing of industrial glass, used with washing machines, screen printing lines, tempering lines, etc.

A. Main structure

The machine consists of bed, fixed grinding wheel group, moving grinding wheel group, lifting structure, circulating water cooling system, glass conveying structure, transverse opening and closing structure, inlet positioning structure and control system.

The machine is treated by high temperature annealing after welding by bed, fixed grinding wheel group and moving grinding wheel group, and the internal stress is eliminated with aging treatment, the working time is not deformed, and the quality of the processed glass is guaranteed to be stable. The upper beam adopts the integral lifting structure, which is advantageous to replace the grinding wheel conveniently.

B. Technical parameter

Max. Glass size 1000mm (could do customized)

Min. Glass size 100mm (also could do 55mm need customized)

Grinding glass thickness 0.5-19mm

Speed: 0.67-10m/min

Power: 13.7kw

Voltage: 380V/50hz

Parallelism ≤0.20mm/m

Diagonal ≤0.40mm/m

Weight: 3500kgs

Dimension:  2420*2510*1650mm

C. Equipment configuration

Spindle motor: Xindongya Guangzhou

Transmission, switch on and off, lift motor: Shanghai Ruijin

Wire Rod: TBI taiwan

Guide rail: HIWIN taiwan

Transmission optical shaft: Wuxi chrome plated hard shaft

Other electrical devices: circuit breaker (Zhengtai); encoder (Omron); AC contactor (Siyan Technology)

Synchronous wheel: imported 2A12 aluminum alloy

Synchronous belt: Italian Babel seamless steel wire belt

Grinding wheel: domestic high-quality diamond wheel and Italy imported resin wheel.

Transfer wheel: PU rubber wheel
