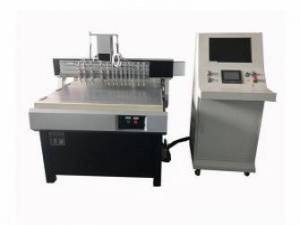

SY-1215 Multi cutter glass cutting machine

Multi cutters for glass cutting. Could do customized table size.

Item NO.:
SY-1215
Color:
Steel Blue or Customized
Shipping Port:
Shanghai/Nanjing
Lead Time:
20 days
Warranty:
1 Year
Size Range:
Max. Cutting: 1150*1450mm
Processing Range:
Ornaments, mosaics, handicrafts, liquid crystal displays, optical glass and other Irregular glass

contact now

Product Details

Technical Parameter

Work table: 1200*1500mm

Max. Cutting: 1150*1450mm

Cutting thickness: 0.5-12mm

Cutting parallelism: ≤±0.10mm/500mm

Cutting speed: 0--20m/min (could supply Yaskawa servo system, speed 0-70m/min)

Dimension: 2300*1800*900mm

Power: 1.9kw (fan 1.5kw, X axis motor 0.3kw, Y axis motor 0.3kw, Z axis motor 0.2kw)

Voltage: 380V(fan)/220V(PC)/50HZ

Equipment configuration:

Stepping motor and drive (could supply Japan Yaskawa servo system)

Taiwan Guideway, ball screw rod, ensure accuracy and stability of equipment

Table with resin material, and the flatness is extremely high , and the self - milling treatment. Air suction device is attached to facilitate the upper and lower sheets, without scratching the glass.

Computer WINDOWS operation interface CAD graphics input, automatic cutting of various shapes of glass, easy to operate.

Function

SY-automatic glass cutting machine adopts step motor, driver and NC control system, equipped with imported cutter wheel, can realize all kinds of glass and ultra-thin glass straight, shaped, circular cutting. The machine adopts man-machine interface and can be cut by CAD drawing.
