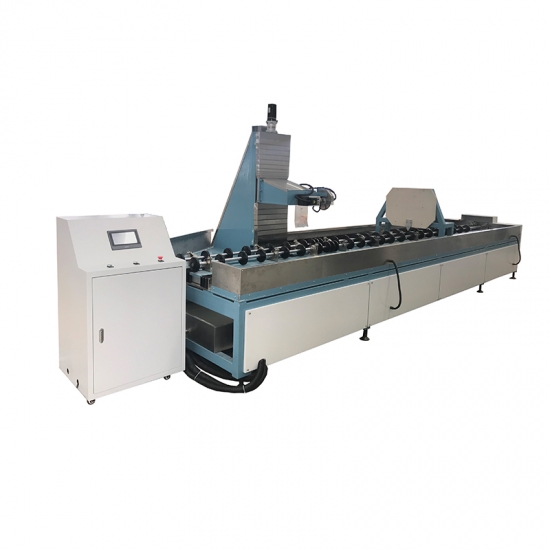

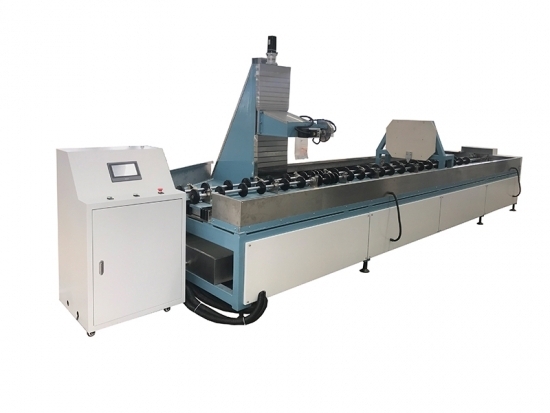

Rotary Type Glass Tube Cutting Machine

Processing parameters:

Raw material length range: 300-3500mm

Raw material cutting diameter: Φ70-Φ600mm(If the pipe with smaller diameter needs to be cut, the size of saw blade should be increased)

Raw material status: By default, the cut pipe is of uniform diameter, and there is no reducer.

The length of the product after cutting is 10-1650mm

Wall thickness of raw material pipe: ≥ 1.0mm

Length machining accuracy: ≤±0.30mm (Φ100-Φ200mm)

≤±0.40mm (φ200-400mm)

≤±0.50mm (Φ400-Φ600mm)

Section size: φ150*0.5*25.4mm resin sheet

Remarks:

1. To change the specifications, please manually adjust the spacing between rubber wheels or change the cutting sheet model;

2. Our equipment is not matched with saw blades, so the ordering party shall provide the physical goods to the contractor before the completion of the equipment;

3. The front baffle cannot be used if the length of the finished product is shorter than 100mm, which may require manual fixing of raw materials.

Items	Standard
Beat	Calculated according to the wall thickness of 5mm and outer diameter of 600mm, excluding loading and unloading time）
Yield	≥95% meet the acceptance standard
Quality	Most of them are smooth and may appear to be small fractures to the naked eye
Cutting head spee	Adjustable
