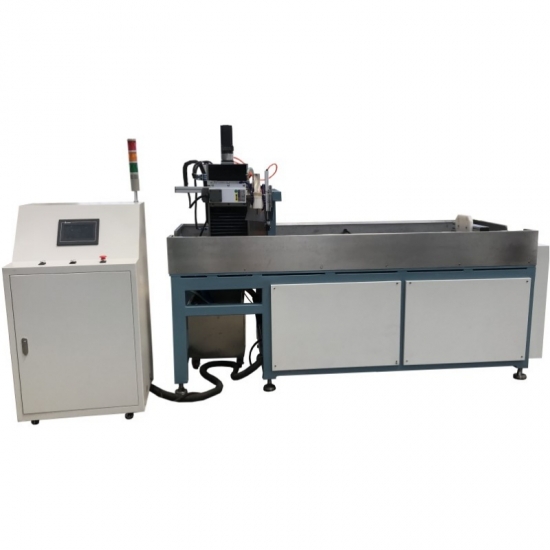

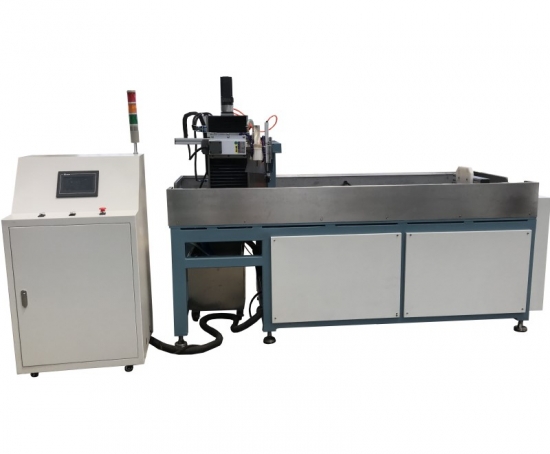

Rotary glass tube cutting machine

https://youtu.be/cIOZ2rp2dOA   video link

The raw material is hollow glass tube or glass rod

The maximum length range of raw material is 1500MM

Raw material diameter range Φ20MM- A 200MM

(To change the specification, some components need to be manually adjusted. If necessary, the specification and model of the cutting piece should be replaced.)

Saw blade speed 0-9000r /MIN(variable frequency regulation)

The length of the product after cutting is ≥30MM

Machining accuracy ≤ 0.8mm (Φ 20mm-N 200MM)

Machining efficiency ≤2 min (according to Φ200MM diameter cut one knife estimate, not counting loading and unloading and adjustment time)

The thickness of slices is standard with 1.2mm resin material



Manually adjust the system parameters (cutting head speed/head lifting displacement/rubber wheel speed/end baffle walking distance, etc.),
Empty run to ensure that the components back the normal work after the zero state - processing raw materials by artificial or the buyer to provide mechanical loading equipment into the initial location - cutting artificial recognition baffle diameter - will end to resist equipment - into cutting mode - the man-machine dialogue interface can be divided into manual/automatic mode - touch screen operation, one key
Bars start to rotate, the speed is adjustable -- cutting motor action, cutting saw blade rotation, the head assembly overall downward pressure (downward pressure action is a piecewise speed, the later stage of the demander to test the threshold of each section of falling speed, so as to reduce the crack,
The possibility of center indentation and exterior protrusion -- the cooling water system starts internal circulation at the same time of cutting -- the cutting action completes the overall return to zero of the machine head -- manual blanking, manual detection and identification of waste materials.
