This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;
Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.
The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.
This table is for glass transmission, the table size is customized according to customer's requirements.
This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy.
There has slide ruler on its swing arm , you can set the length and lock it . place your glass tube or rod close to the flap of the ruler left end . so you can mass produce .
Brand:
RuilongItem NO.:
SY-2000MWarranty:
1 yearSize Range:
can customizedProcessing Range:

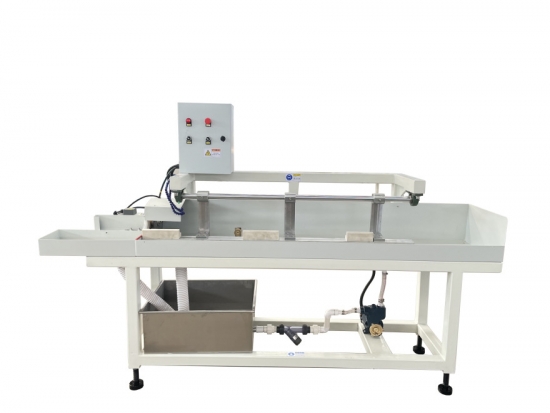

can customizedScope of application: applicable to small pieces of optical materials, glass tubes, glass bricks, glass rods or ceramics, such as brittle and hard non-metallic curved wire cutting, wire saw running speed adjustable, with small cut arc, smooth cut, no edge, easy to operate.
There has slide ruler on its swing arm , you can set the length and lock it . place your glass tube or rod close to the flap of the ruler left end . so you can mass produce .
Technical parameters
Sawing blade speed: 0-9000 adjustable per minute
Cutting size: 10-35 mm (customizable according to customer needs)
Normal cut width: less than 1.2mm
Cutting pipe length: 1200mm (customizable according to customer demand)
Cut maximum length: 10 -50 mm (customizable to customer requirements)
Smooth cut, no breakage
motor:220V / 50 Hz 2200W
net weight: 300kg
