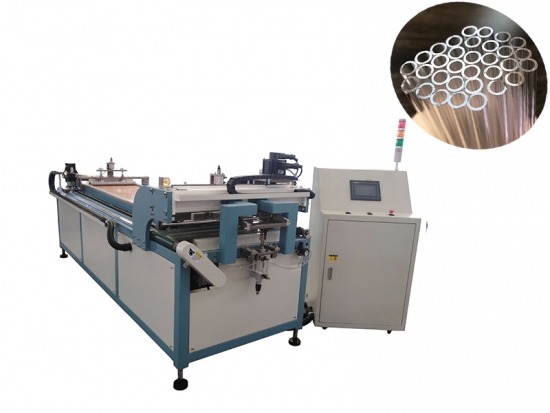

Automatic Glass tube cutting machine （Dry Cutting）

This machine is used for glass tube and glass rod cutting.

contact now

Product Details

Operation Process: PLC text control, foolproof operation.

1.Manual tube loading

2.Input the cutting length and quantity, automatic feed

3.Feeding by pneumatic pressure

4.Cutting

5.Breaking

6.Transfer

Dimension: 2000*1100*1000mm; weight 650kg, Power 3KW.

Parameter

1.Length: 100MM-1500MM（customized）

2.Cutting diameter: Φ1MM-Φ6MM, cutting length 80-200mm

3.Effect: smooth cutting surface

Configuration:

1.cutting machine: 380 v / 0.85 KW (Delta) Feed motor: 110 type stepping motor (domestic)

Transmission motor: 86 type stepping motor (domestic)

2.guide screw: HIWIN and TBI (Taiwan)

3.cutting tool bit: wald

4.pneumatic components: AirTAC

5.Electric components: the Great Wall or CHINT products

6.Cover: stainless steel

7.application: Ruilong self design

8.PLC, touch screen, inverter: Delta

9.proportional valve SMC Japan

Tags : cutting borosilicate glass tube glass tube cutting cutting glass tube machine
