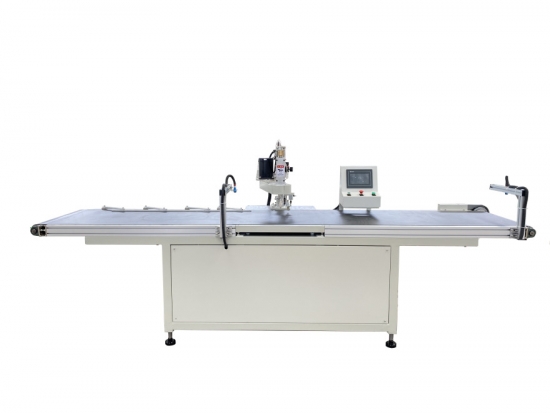

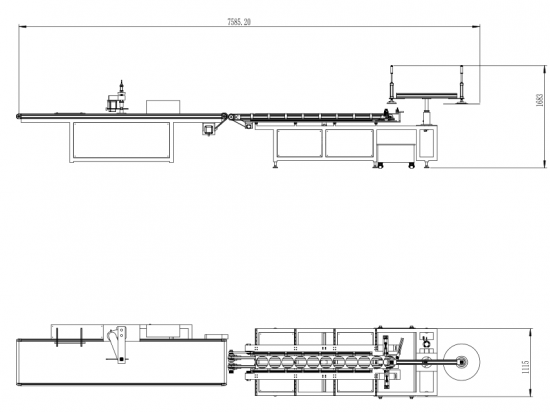

SY-1200 Large round glass table making machine

SY-1200 round glass cutting machine

This equipment is suitable for the round cutting operation of a single piece of rectangular glass. Manual

or manipulator feeding , assembly line.

Glass Material requirements: front-end waste 10-13mm; both side waste 7-10mm; otherwise the cutting

effect of the edge will be affected.

Cutting accuracy: ± 0.25mm / m (subject to the cutting line)

Circle speed: about 3- -4 pieces / minute

Operating air pressure: 0.4--0.6MPA

Cutting knife holder: using pneumatic, knife head 360 degrees rotation for round cutting

Positioning: Proximity switch signal control positioning

mechanical part:

Transmission belt: national standard transmission belt;

Interface: Chinese and English touch screen platform, Delta brand

PLC: delta

Approach switch: Omron

Power switch: Schneider2

Scale valve: Japan SMC

Countertop: steel plate processing

Electrical appliances part: Chint

Voltage: 380V / 50HZ/3Phase

Round row motor: Delta servo motor

Transmission motor: Delta servo motor

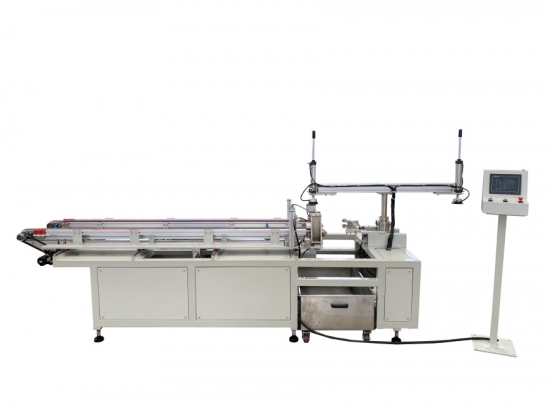

SY-1200B Glass breaking Machine

Structure profile:

This machine include Testing mechanism; transmission mechanism; positioning mechanism;

shear mechanism (double-work station); waste treatment mechanism; mechanical suction cup

grasping and moving mechanism. After the glass positioning, the equipment with an automatic

bilateral line breaking device. Remove the circle piece and place it in a fixed place.

Note: the extension value to the center side, about 1.0mm is considered as unqualified;

the qualified rate can reach 90-95%; after the breaking, the glass is completely separated,

the paint of the mirror, after the automatic peeling, is regarded as a mirror quality

problem, not included in the unqualified range.

configure:

1 Transmission motor: Delta servo motor

2 Transmission belt: domestic custom PU synchronous belt; width of 50mm.

3. Positioning cylinder: domestic production;

4. Optical inspection switch: Omron

5 cylinder: AirTAC

6 PLC: Delta

7 Touch screen: Delta

8. Inverter: Delta

9 Breaking accuracy: ± 0.3 (subject to cutting line)
