Stained Glass Cutting Machine

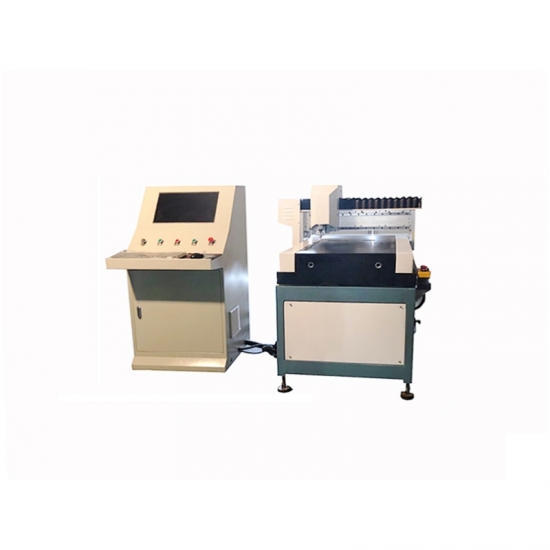

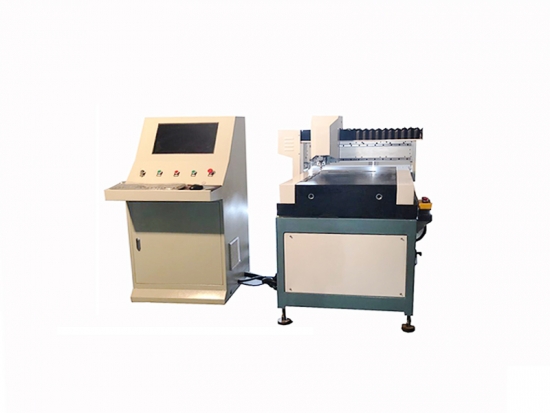

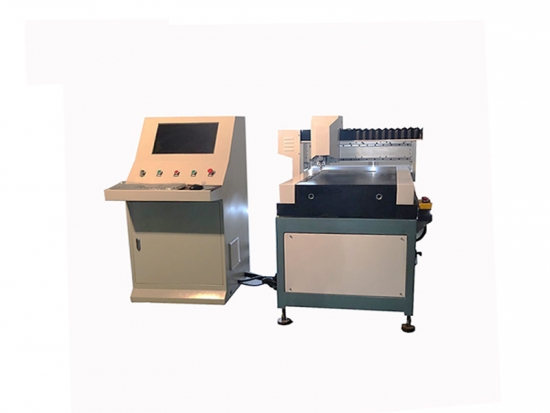

SY-6050 CNC small glass cutting machine is used for the cutting stained glass. All kinds of shapes can be cut at one time. The cutting efficiency is high, the precision is good, the finished product rate is high and the operation is simple and convenient. No technical requirements for operators. You can cut all kinds of shapes at will.

Item NO.:
SY-6050
Color:
Steel Blue or Customized
Lead Time:
25 days
Warranty:
1 Year
Size Range:
10*10mm-600*500mm
Processing Range:
Stained glass

contact now

Product Details

Parameter

Cutting thickness: 0.8-5mm

Cutting maximum size: 600*500mm

Machine weight: 1000kgs

Cut parallelism: ±0.1mm / 500mm (small glass straight line tolerance can be controlled within 0.05mm)

Cut diagonal: ±0.1mm / 500mm (small glass straight line tolerance can be controlled within 0.05mm)

Tolerances for special-shaped cutters: ±0.1mm

Cutting speed: 0-75 m / min (adjustable)

Power: 4.05kw

Configure

Drive system: X,Y,Z axis adopts Yaskawa Japan servo motor

Oil supply mode: automatic oil injection device

Positioning device: pneumatic positioning device

Mechanical configuration: Taiwan imported silver guide rail, rack: Japan KHK rack

Table: Marble table, with floating device.

Pneumatic element: SMC

Electrical components: CHINT

Computer Configuration : HKC

Software

Use Galil (USA) professional glass cutting software. CAD drawing, directly click on the thickness of the glass, automatic pressure adjustment and glass cutting distance to achieve automatic cutting.

Quick-wear part: cutter (NIKKEN)
