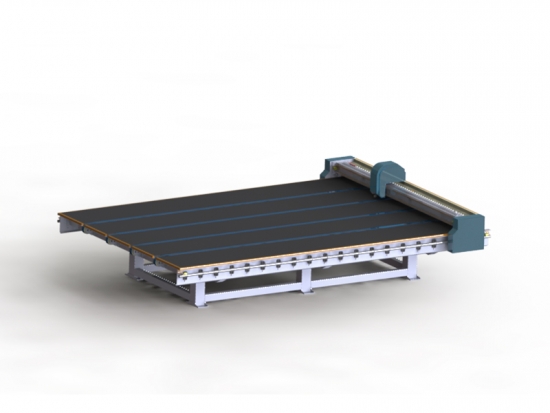

Full Automatic Glass Cutting Machine

Full Automatic Glass Cutting Machine is controlled by computer.

Item NO.:
SY-4228
Color:
Steel Blue or Customized
Warranty:
1 Year
Size Range:
10*10mm-4200*2800mm
Processing Range:
Float glass, window glass, wind glass, door glass, building glass

contact now

Product Details

Equipment specifications

Maximum glass cutting size: 4200*2800mm (Special size could do custom table)

Workbench table: 900±30mm.

Machine weight: 2.5T.

Cutting thickness: 3~19mm

Cutting parameters

Straight line parallelism: ≤±0.25mm/m

Diagonal accuracy: ≤±0.30mm/m（The above precision is subject to the cutting line accuracy）

Cutter speed: 0~180m/min.（adjustable）

Cutter acceleration ≥3.0m/s²

Cutter holder speed ≥180m/min

Cutter holder acceleration ≥6.0m/s²

The Speed of the conveyor belt ≥40m/min

Cutting head positioning accuracy error ≤±0.2 mm

Voltage Power

Installed Power requirements: 380V/50HZ （or customized）

The actual power of the equipment: 8KW

Compressed air: 0.6MPA

Equipment performance

Equipment frame: equipment after aging treatment to ensure that the table is not deformed, as well as the accuracy of parallelism.

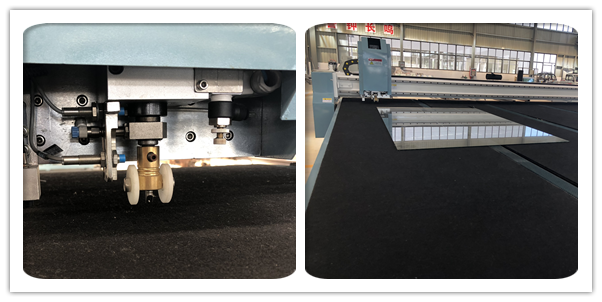

Cutting knife seat: the knife can be rotated 360 degrees, up and down cutting (can accurately cut any straight line and a variety of shaped glass)

Table: the use of imported high-density waterproof panel. Can be effective moisture.

Felt: imported industrial felt (fiber and wool composition) is smooth, and anti-static, reduce glass scratches.

Oil supply: pneumatic automatic filling, and the next knife synchronization. Double oil control, can be used simultaneously kerosene and cutting oil.

Conveyor: Automatic belt conveyor.
