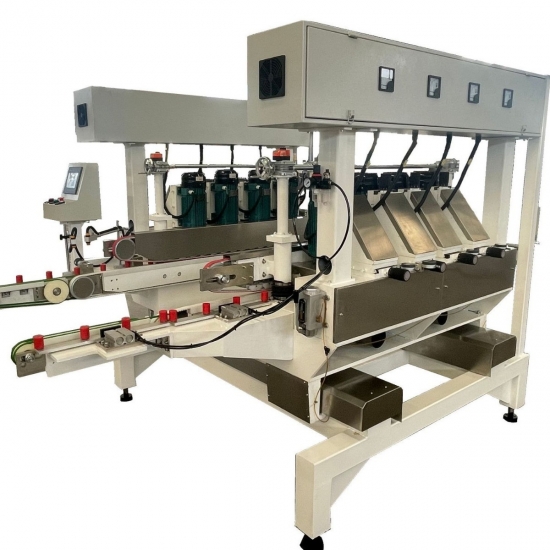

Photovoltaic plastic panel milling machine Photovoltaic panel glue removal machine

Function Introduction:

This equipment is specifically designed for grinding plastic sheets, capable of calibrating edges, smoothing roughness, and performing upper and lower chamfering in a single pass. It employs dual linear guides and double ball screws for stable and precise automatic opening and closing operations. The workpiece conveyance is powered by a variable frequency drive motor, controlled by a custom-designed software with a touch screen display.

Machine Parameters:

· Touch Screen: Taiwan Delta

· PLC: Taiwan Delta

· Inverter: Taiwan Delta

· Rotary Encoder: Omron, Japan

· Switching Power Supply: Taiwan Delta

· Motors: Anhui Yonghua Special Grinding Head Motors (3.0Kw & 2.2Kw)

· Timing Belt: Babbitt

· Timing Pulley: Aluminum Alloy

· Photoelectric Sensor: Taiwan Yangming

· Ball Screw: Taiwan TBI (φ25mm)

· Guide Rail: Taiwan HIWIN (25mm)

· Conveyor Motor: Domestic with Reducer (1.5Kw)

· Dust Collection & Filtration System: Domestic

· Transmission Shaft: Chrome-plated Optical Shaft (φ40mm)

· Total Weight: 1600Kg

· Estimated Installed Power: 17.5Kw

· Power Supply: 380V/50Hz

· Milling Cutters: Alloy Steel & Steel Wire Brush (Drawings and Supplier Information Provided Later)

Technical Parameters:

· Maximum Processing Width: 1000mm

· Minimum Processing Width: 150mm

· Sheet Thickness: 10-20mm

· Speed Range: 2-8 m/min

· Chamfer Angle: 45° (Adjustable)

· Finished Product Dimensional Tolerance: 0-0.15mm

· Grinding Capacity: ≤1mm

· Chamfer Width Tolerance: ≤0.5mm

Note: This comprehensive machine is tailored for precision grinding and shaping of plastic sheets, ensuring high-quality outcomes with its advanced components and control system.
