This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;
Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.
The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.
This table is for glass transmission, the table size is customized according to customer's requirements.
This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy.

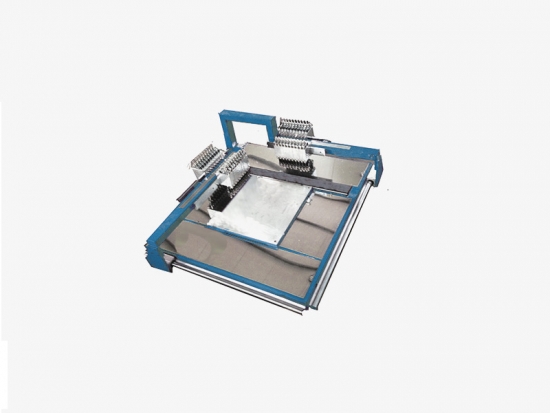

SY-4035 economical cutting machine is widely used in cutting flat glass and super thin glass. Convenient operation, reliable and stable operation, high cutting efficiency and precision, long service life of cutter wheel.
Item NO.:
SY-4035Color:
Steel Blue or CustomizedLead Time:
15 daysWarranty:
1 YearSize Range:
10*10-350*350mmProcessing Range:
small piece glass, Slide glass and coverslip glassthin glass,
Cutting accuracy: ± 0.10mm/m
Diagonal accuracy:±0.25mm/m
Maximum glass size: 350*350mm （could do customized size）
Minimum glass size: 20*20mm (or customized 15*15mm)
Cutting thickness: 0.7-8mm
Cutter life: 30,000-50,000m (Straight line)
Operator 1 people
Cutter box adjustment
Place small glass under the cutter wheel, the upper limit screw is loosened and limit screw is rotated, the angle between the low end of knife box and glass surface is 60°－75°, and then the position limiting screw is tightened. In addition, the cutting pressure can be adjusted by the knurling mother in the lower part of the rotary cutter box.
Anhui Ruilong Glass Machinery Co., Ltd. is a senior enterprise specializing in the production of manual glass cutting machine and other glass machinery.Our company has advanced production technology and mature business model, and is your reliable partner.
Anhui Ruilong Glass Machinery Co., Ltd.
Email address : info@ahrlbljx.com
Phone : +8613063758190
Add：No.9 East of Shengli Road, Longzihu District
Manual Glass Cutting Machine
Manual glass cutting machine with multi cutters, just need hand move the handle, then could finish cutting procesisng.
Glass Strips Cutting Machine
Glass Strips Cutting Machine is a customized product, which is specially used for cutting fire-proof glass strips, decorative glass strips, hand-controlled cutting stroke, can increase the motor, and upgrade to semi-automatic cutting, which is faster and more efficient than the traditional cnc cutting machine.
SY-1318 Manual Glass Cutting Table
SY-1318 Manual Glass Cutting Table widely used in flat glass, ultra-thin glass LCD glass, glass-ceramics, amorphous glass in wire cutting and offline cutting. Convenient operation, reliable and stable operation, high cutting efficiency and precision; long service life of cutter wheel can be repaired free of charge.
SY-1200 Manual Glass Cutting Machine
SY-1200 manual glass cutting machine, high precision multi-cutters glass cutting machine widely used in flat glass, ultra-thin glass LCD glass, glass-ceramics, amorphous glass in wire cutting and offline cutting. Convenient operation, reliable and stable operation, high cutting efficiency and precision; long service life of cutter wheel can be repaired free of charge.
SY-2621 Manual Glass Cutter
Ruilong developed and produced SY-2621 manual glass cutter widely used in flat glass, ultra-thin glass LCD glass, glass-ceramics, amorphous glass in wire cutting and offline cutting. Convenient operation, reliable and stable operation, high cutting efficiency and precision; long service life of cutter wheel can be repaired free of charge.
CNC Glass Cutting Machine
CNC glass cutting machine consists of full automatic glass cutting machine, CNC glass loading machine, glass breaking machine.
