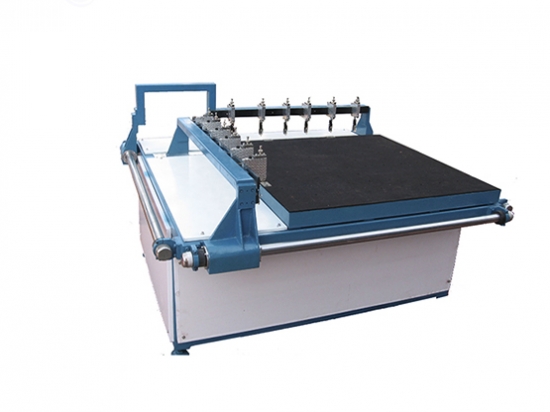

SY-1200 Manual Glass Cutting Machine

SY-1200 manual glass cutting machine, high precision multi-cutters glass cutting machine widely used in flat glass, ultra-thin glass LCD glass, glass-ceramics, amorphous glass in wire cutting and offline cutting. Convenient operation, reliable and stable operation, high cutting efficiency and precision; long service life of cutter wheel can be repaired free of charge.

Item NO.:
SY-1200
Color:
Steel Blue or Customized
Shipping Port:
Shanghai/Nanjing
Lead Time:
2 weeks
Warranty:
1 Year
Size Range:
1180*1180
Processing Range:
flat glass, ultra-thin glass LCD glass, glass-ceramics, amorphous glas

contact now

Product Details

Parameter

Cutting accuracy: ±10mm/m

Diagonal precision: ±0.2mm/m

Cutting maximum size: 1180×1180mm（Special specifications can be customized according to customer needs）

Cutting minimum size: 20*20mm (Can be customized to a smaller size)

Cutting thickness: 2－25mm

Cutting efficiency: 1-2 gigabytes per minute

Cutter life: 3-5 m (straight line conventional cutting)

Operator: 1-2 people

Use of instructions

Cutter box adjustment

Place small glass under the cutter wheel, the upper limit screw is loosened and limit screw is rotated, the angle between the low end of knife box and glass surface is 60°－75°, and then the position limiting screw is tightened. In addition, the cutting pressure can be adjusted by the knurling mother in the lower part of the rotary cutter box.
