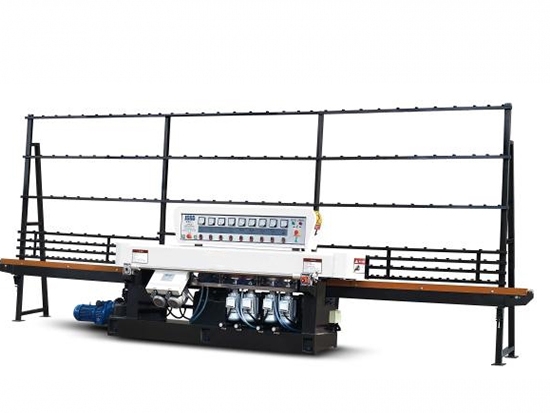

Vertical Type Glass Flat Edging Machine

SY-9243 could grinding straight line edge shape, with 9 spindles.

Item NO.:
SY-9243
Color:
Steel Blue or Customized
Shipping Port:
Shanghai/Nanjing
Lead Time:
30 days
Warranty:
1 Year
Size Range:
max:3000mm*3000mm min:150*150mm
Processing Range:
glass, stone, perspex glass, acrylic plate, etc.

contact now

Product Details

Description

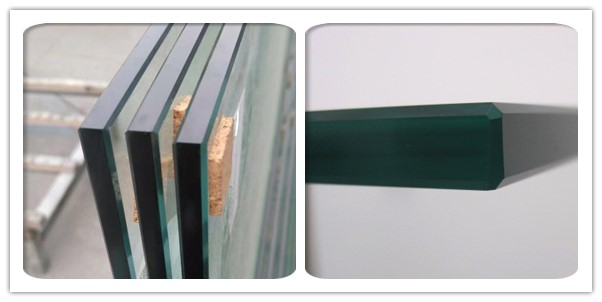

SY-9243 is suitable for grinding the straight edges and edges of flat glass of different sizes and thickness. The processing is rough grinding, fine grinding and polishing. The machine adopts mechanical stepless speed regulation, large adjustable range and stable shifting speed. It can change the feeding speed during the grinding process.The machine can drive glass with a thickness of 5—32mm for grinding. The diamond grinding wheel is thick and sharp. It is sharply ground with i0S40 grinding wheel. The machining precision is high and the surface is smooth and high. The surface of the polished glass can reach the mirror surface.

Main Specifications

Dimension: 6500*1000*2500（L*W*H）

Workbench Height: 7500mm (The highest point to the ground)

Weight: 2500kgs

Voltage: 380V/50Hz

Power: 15KW

Feeding Speed:0.5m/min~5m/min stepless adjustable

Processing Range

The maximum amount of straight edge grinding:3mm

Maximum angular width of corner: 2.5mm

Angular angle: 45°

Glass plate size: max:3000mm*3000mm min:150*150mm

Glass Thickness 5-25mm
