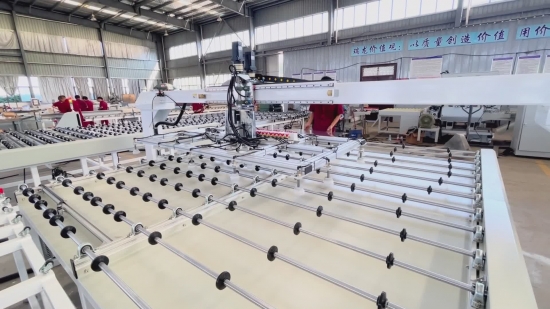

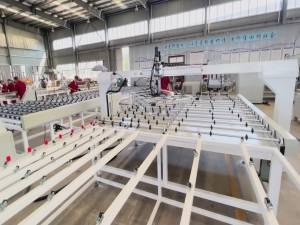

Glass Rotation table with manipulator

https://youtu.be/nyq__hUTXTg  video

1. Equipment parameters

1.1 Equipment composition

1), SY-2717 universal wheel

2), SY-2727 rotary table

1.2 Mechanical configuration:

1), Sprocket chain: special high-precision reinforced type

2), -optical axis: domestic complexplated optical axis

3), motor: Taida servo motor in Taiwan

4) speed reducer: Seiko, Taiwan

5), rack: KHK, Japan

6), guide rail: TBI, Taiwan

7), transmission roller: PU material (optional rubber roller transfer)

8), Transport Sync Band: Barbelley

9), cylinder: Yadecke, Taiwan

10), localization block: polyurethane

1.3 Original electrical appliance:

1), PLC controller: Taiwan (shared by all our equipment)

2), proximity switch: Yangming, Taiwan

3), control cable: Shanghai ichu shield cable

4), contactor, circuit breaker: Chint

5), power supply: Taiwan, Taiwan

6), solenoid: Yadk, Taiwan

7), transmission motor: Taida servo motor in Taiwan

8), touchscreen: Taiwan Taiwan (shared by all our equipment)

1.4 Technical parameters:

1), applicable Size Range: 500 * 500-1500 * 2500mm

2), applicable thickness: 2-19mm

3), transmission speed: 6-8m/min(adjustable)

 4), Device Height: 900 ± 50mm(is customizable)

5), Installation power supply: 380V/50Hz

6), Compressed air: 0.3M p a-0.6Mpa

II. Technical information

1), This equipment is used for supporting other manufacturers' equipment, and the roller surface height should be defined before the design freezing;

2), universal wheel table does not have power, need to manually push with the edge machine feed cylinder;

The 3), manipulator rotary table has rapid stability and does not damage the glass surface;

4), adopts unified control, and the reserved point of PLC can be connected with other manufacturers;

The 5), transmission part adopts servo motor, which is more rapid and stable compared to the CVT governor motor of ordinary manufacturers and easy to adjust.

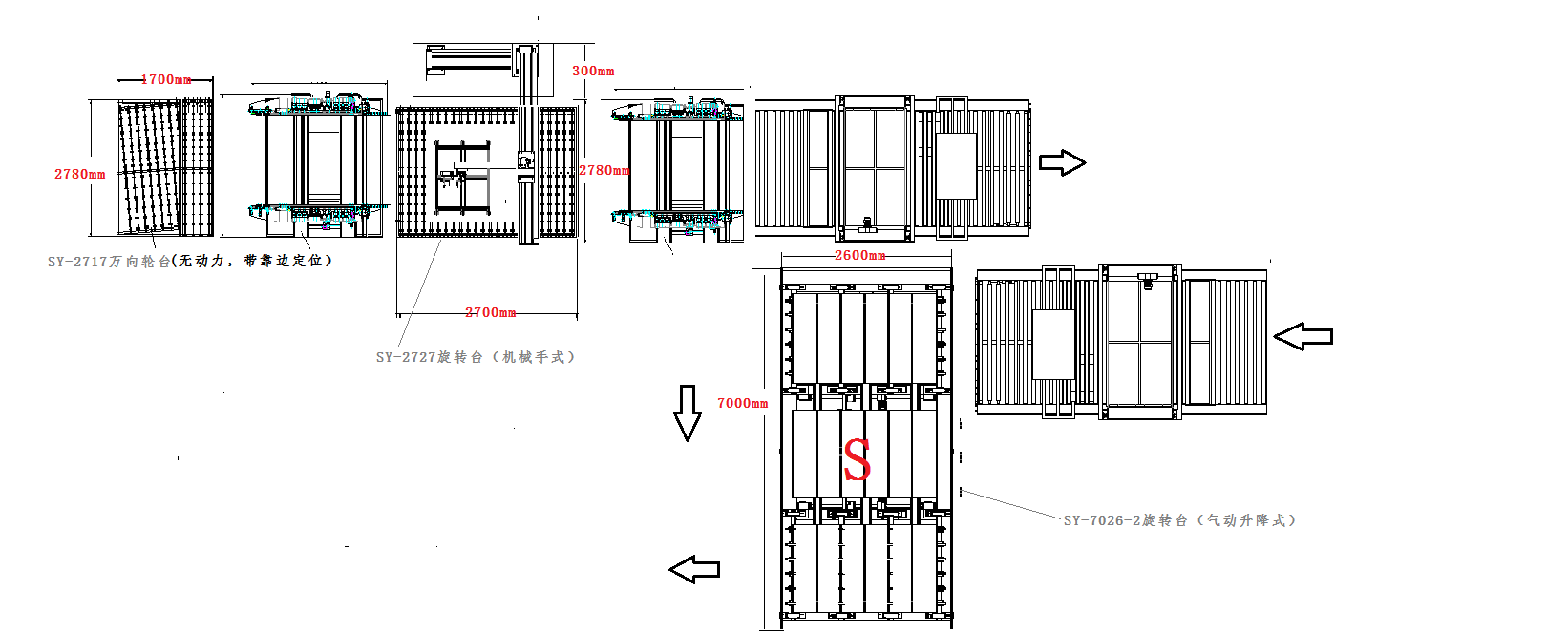

III. LAYOUT(dimensions are for reference only)
