This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;
Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.
The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.
This table is for glass transmission, the table size is customized according to customer's requirements.
This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy.

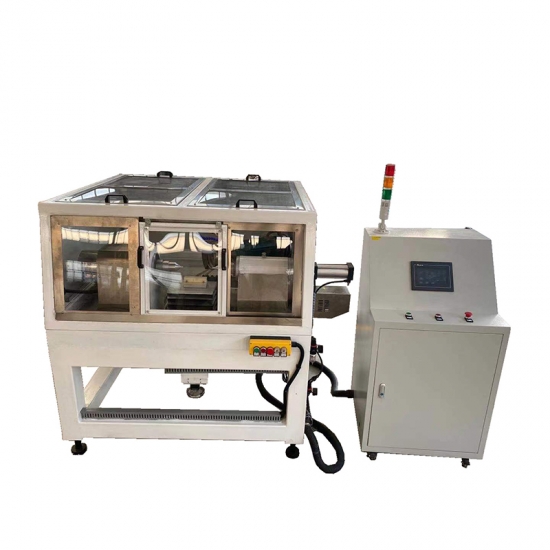

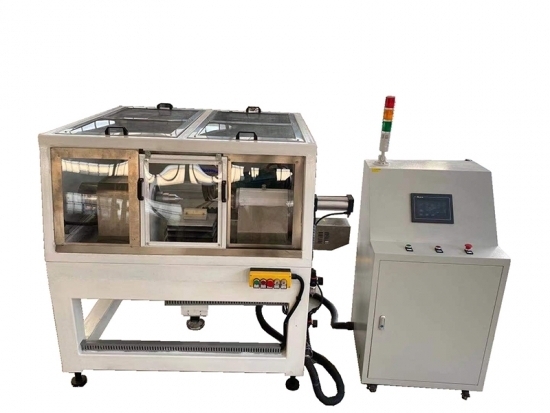

This product is a simple edge grinding machine designed to meet the market needs and solve the customer's round glass edge grinding.
It can perform fine grinding on round glass and grind irregular prisms into round shapes (i.e. square pieces into round pieces). The machine uses a stepless speed regulating motor to drive the glass to rotate, and the cylinders on both sides hold the glass to rotate evenly. The grinding wheel is close to the glass to achieve the edge grinding effect.
Brand:
RuilongItem NO.:
CustomizedPayment:
T/T, LCProduct Origin:
ChinaColor:
CustomizedShipping Port:
ShanghaiLead Time:
4 weeksWarranty:
1 YearSize Range:
CustomizedProcessing Range:
Customized
Machine parameters:
1. Grinding head motor power 0.75KW high-speed motor (variable frequency speed regulation 0-9000R/MIN)
2. Grinding head feed motor 86 stepper motor
3. Machine size 1400*1200*1100 (regular size)
4. Weight 500KG
Processing parameters:
1. Glass diameter range 5-150mm (customer-customizable specifications and dimensions)
2. Glass clamping length 10-120mm (customer-customizable specifications and dimensions)
3. Accuracy: plus or minus 0.05mm/50mm (special accuracy requirements can be consulted for feasibility)
Product configuration:
1. PLC: Taiwan Delta
2. Touch screen: Taiwan Delta
3. Pneumatic components: AirTac
4. Electrical components: Chint
5. Inverter: Taiwan Delta
6. Rotating motor: variable frequency adjustable
7. Guide rail: Taiwan Hiwin
8. Screw: Taiwan Hiwin
9. Proximity switch: Taiwan Yangming
10. Grinding wheel: special customized bowl wheel
Anhui Ruilong Glass Machinery Co., Ltd.
Email address : info@ahrlbljx.com
Phone : +8613063758190
Add：No.9 East of Shengli Road, Longzihu District
Round Glass Polishing Machine
Round glas polishing machine with two wheels for grinding and polishing.
Glass Washing and drying Machine With Air Knife
SY-1600 glass washing machine is suitable for washing and drying electrion glass, household electrical appliances glass, building glass and Optical glass. Glass washing machine is horizontal structure, one section glass cleaning structure, beautiful appearance, cleaning and drying part of all stainless steel cover.
Glass Tube Cutting Machine (Saw Cutting)
It is suitable for linear cutting of brittle hard non-metallic materials such as capillary glass, glass rod, quartz tube, etc. The saw blade has adjustable running speed, and has the characteristics of smooth cutting, small chipping and simple operation. Automatic feeding, product length can be set directly. Could add baskets and drying system according customer’s requirements
