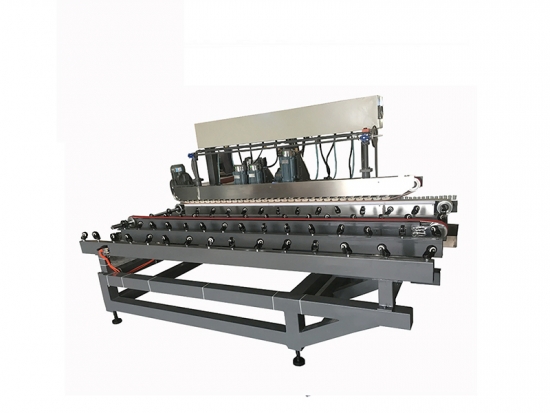

Straight Line Grinding Machine (Horizontal)

SY- 2000-9 Machine can process glass, stone, perspex glass, acrylic plate, etc. and the processing size of the conventional edge grinding machine is obviously reduced , and the minimum value can reach 50 mm . For the thickness of 1mm glass can be processed, beyond the market conventional edging machine can only process 3mm above the glass limit. At the same time, the machine can achieve the accuracy of parallelism and diagonal.

SY-2000-9 is the best choice for optics, electronics, glass crafts, window glass and so on.

Brife Introduction

SR-2000-9 horizontal glass linear edging machine is one of the series of high precision glass linear edging machines designed and manufactured according to the principle of bilateral edge grinder for the purpose of market demand. It is suitable for grinding straight edges and edges of flat glass of different sizes and thickness, rough grinding of straight edges, finishing grinding, polishing, rough grinding of edges and angles on both sides.Using mechanical stepless speed regulation, adjustable range, stable speed change, can change the feed speed in the grinding process, synchronous belt clamping and transmission thickness 2-19mm glass grinding, The diamond grinding wheel is coarse and sharp, the precision is high with 10S40 grinding wheel, the surface is polished with wool felt wheel and cerium oxide polishing agent, the surface of the ground glass can reach the mirror surface finish and the polishing brightness of SY-2000 -9 is even better.

Technical Parameter

Dimension 2500*2000*1800mm (L*W*H)

Workbench height: 800mm

Weight： 1500kgs

Voltage: 380V/50HZ

Power: 15kw

Feeding speed: 0.5-9m/min (stepless adjustable)

Processing scope

Straight line max. Grinding depth: 3mm

Angular max. Grinding width 2.5mm

Angular angle: 45°

Glass size: Max. 2000*2000mm, min. 50*50mm (larger size could do customized)

Glass thickness: 2-19mm

Processing accuracy: Prallelism ±0.3mm , Diagonal ±0.5mm

Spindle quantity: 9 pcs (Straight line 4 or 5 pcs, upper chamfering 2 or 3 pcs, under chamfering 2 pcs. Or customized )
